STATIONARY CONCRETE BATCHING PLANT

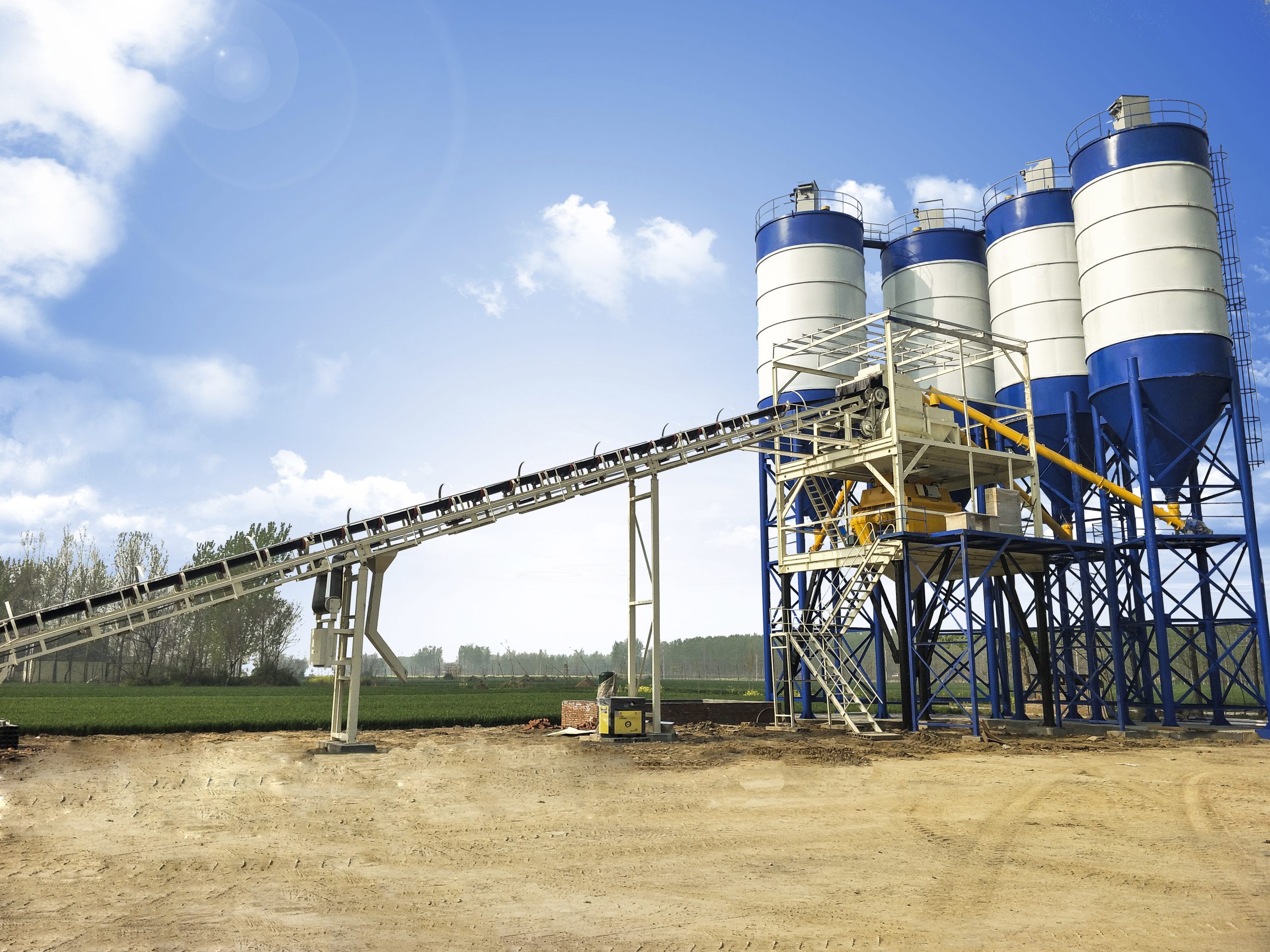

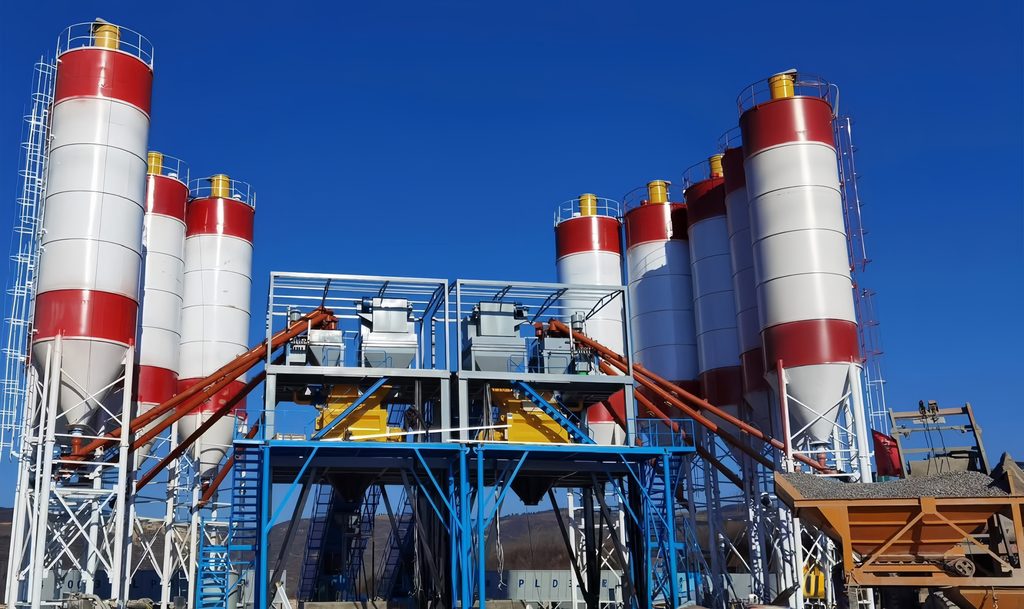

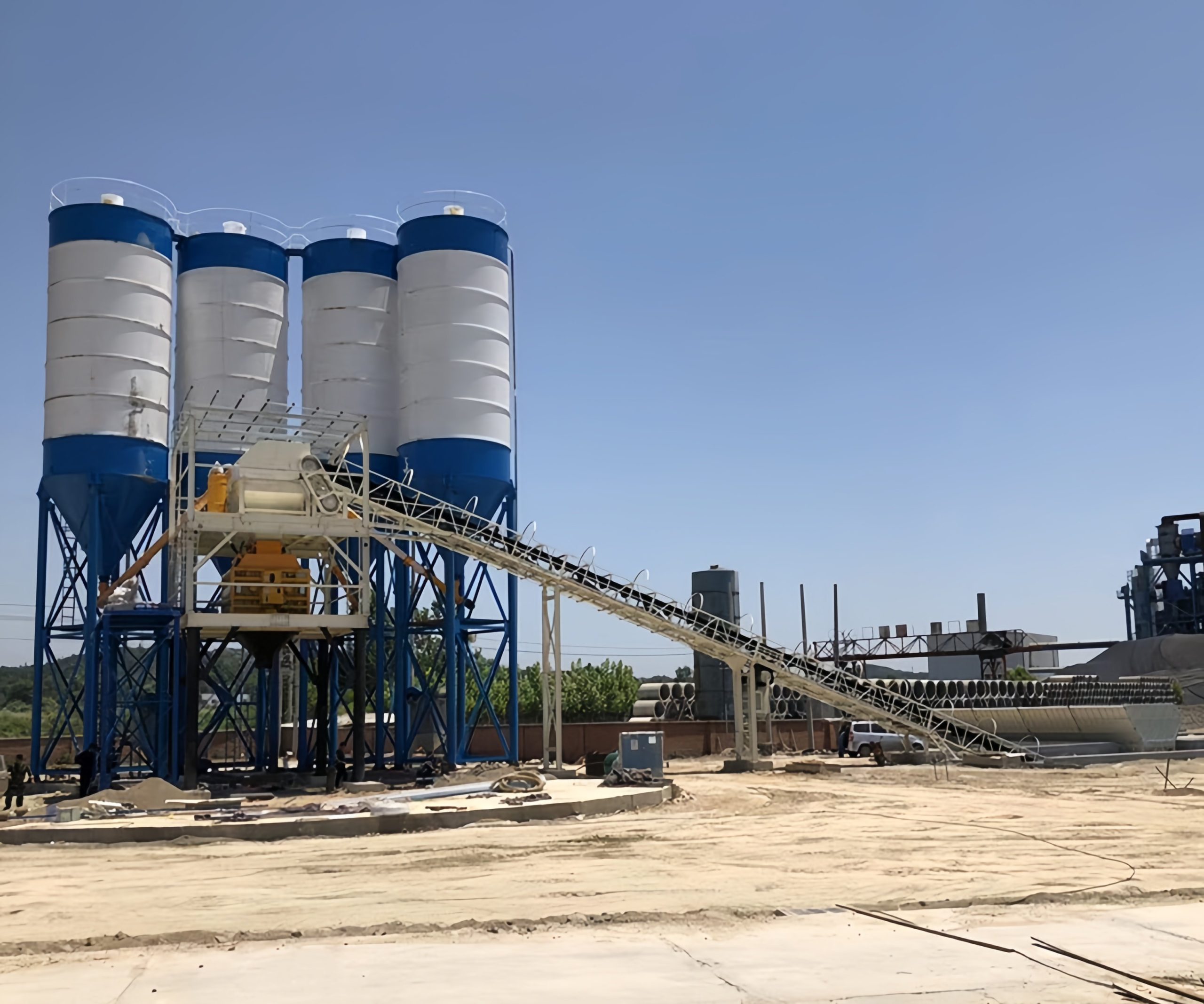

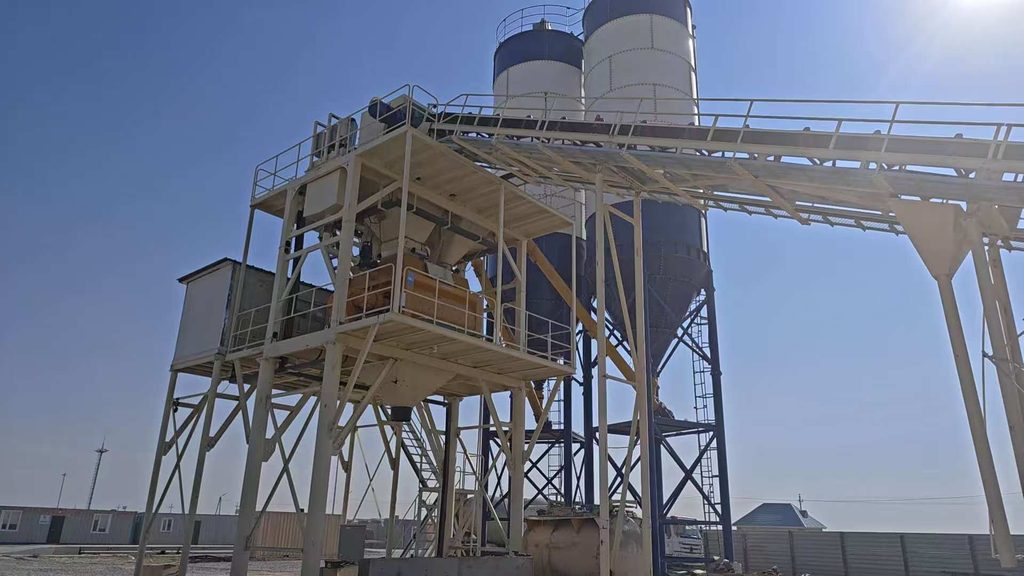

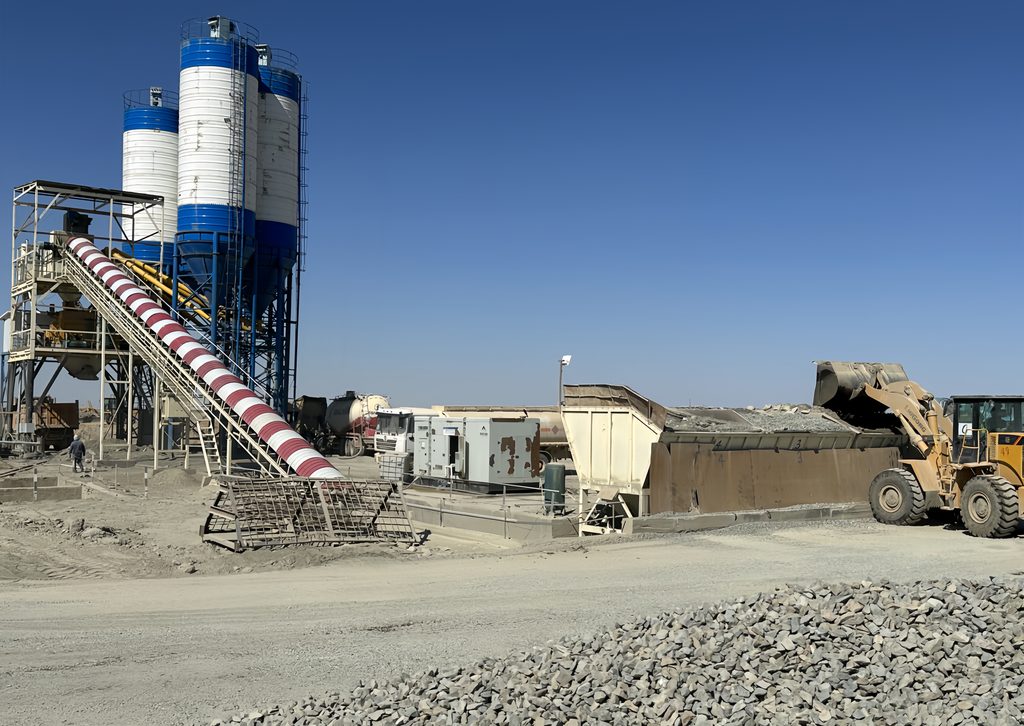

HZS180 Concrete Batching Plant
180 m³/h high-capacity stationary concrete production system for commercial ready-mix, highways, bridges, industrial facilities and major infrastructure projects.
180 m³/h
Capacity
PLD4800
Typical batching
JS3000
Twin-shaft mixer
PLC
Automatic control
Send capacity, aggregate specification, silo requirements, destination, electrical standard and site layout for an engineered proposal.
Why Choose the HZS180?
High-Volume Production
The JS3000 mixing platform is designed for continuous large-scale concrete supply where output stability and production organization are critical.
Belt-Fed Aggregate System
A typical HZS180 uses high-capacity belt conveyor aggregate feeding to support continuous material transfer to the mixing tower.
Industrial Automation
PLC and computer control coordinate batching, weighing, conveying, mixing and discharge while production records can be managed from the control room.
Technical Specifications
| Model | HZS180 |
| Theoretical Capacity | 180 m³/h |
| Main Mixer | JS3000 twin-shaft compulsory mixer |
| Nominal Discharge per Batch | 3000 L |
| Typical Aggregate Batcher | PLD4800 |
| Aggregate Feeding | Belt conveyor |
| Typical Mixing Cycle | About 60 seconds |
| Aggregate Weighing Accuracy | Typically ±2% |
| Powder / Water / Admixture Weighing | Project-specific precision weighing, commonly around ±1% |
| Control System | PLC + industrial computer automatic control |
| Discharge Height | Project-specific, commonly around 4.0–4.1 m |
Reference values for a typical HZS180 configuration. Total installed power, dimensions, storage capacity and weighing ranges vary with the final project design.
Main Components

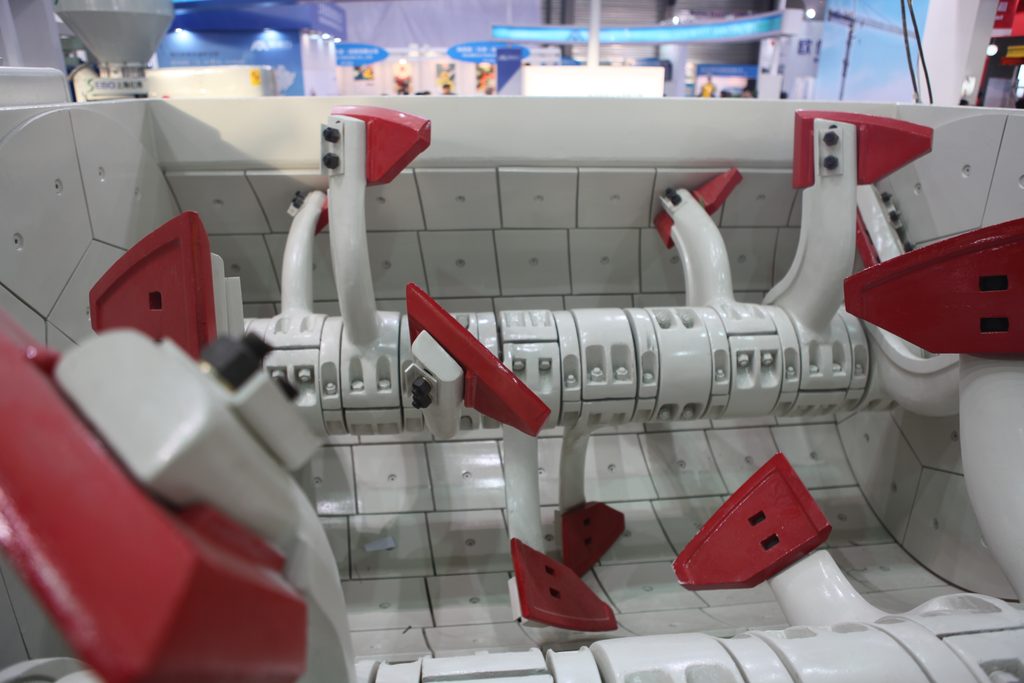

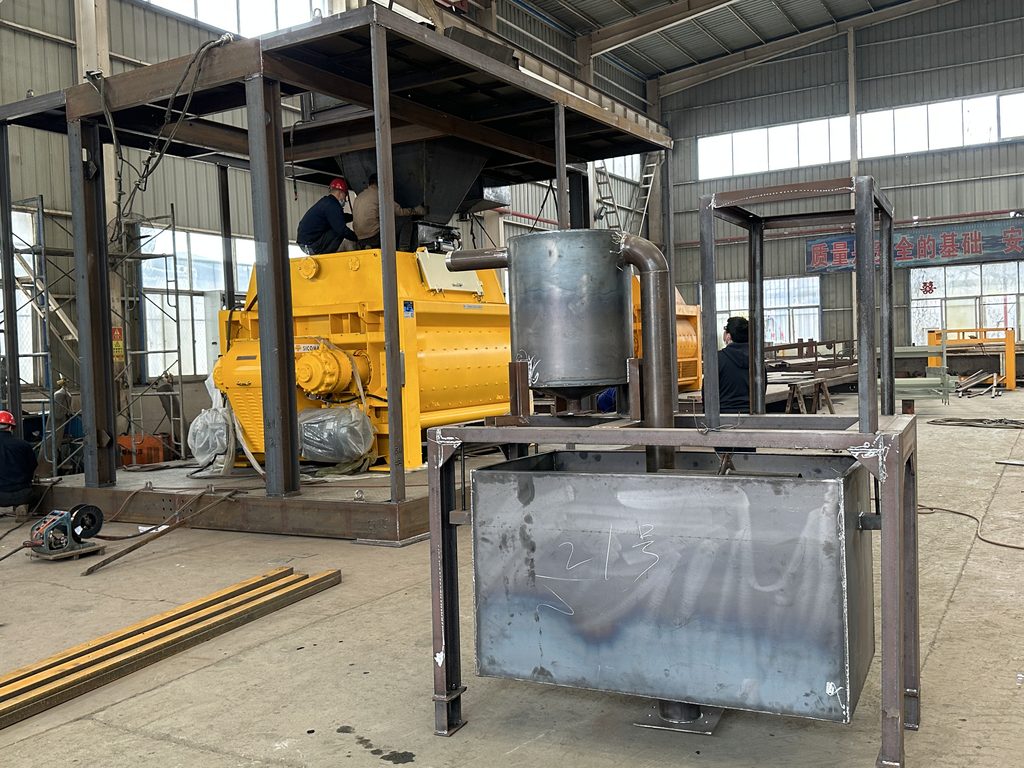

JS3000 Twin-Shaft Concrete Mixer
The JS3000 provides 3000 L nominal discharge per batch in a typical HZS180 configuration and is designed for intensive compulsory mixing.
PLD4800 Aggregate Batching System
High-capacity aggregate bins and weighing equipment batch multiple aggregate fractions before belt conveyor transfer.
Independent Weighing System
Aggregate, cement, supplementary powder, water and admixture can be independently measured to support repeatable recipes.
PLC Automatic Control System
The plant sequence is managed through centralized automatic control, with manual functions available for commissioning and maintenance.

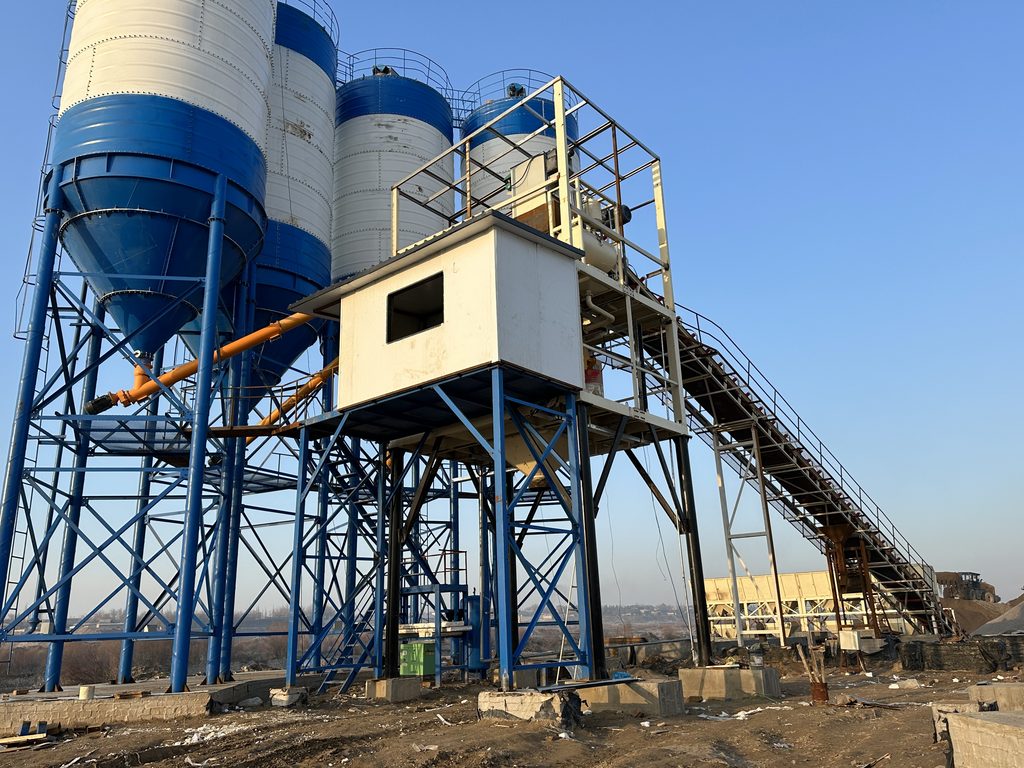

Powder Storage & Conveying
Multiple cement or mineral powder silos and screw conveyors can be configured according to consumption, material types and site logistics.

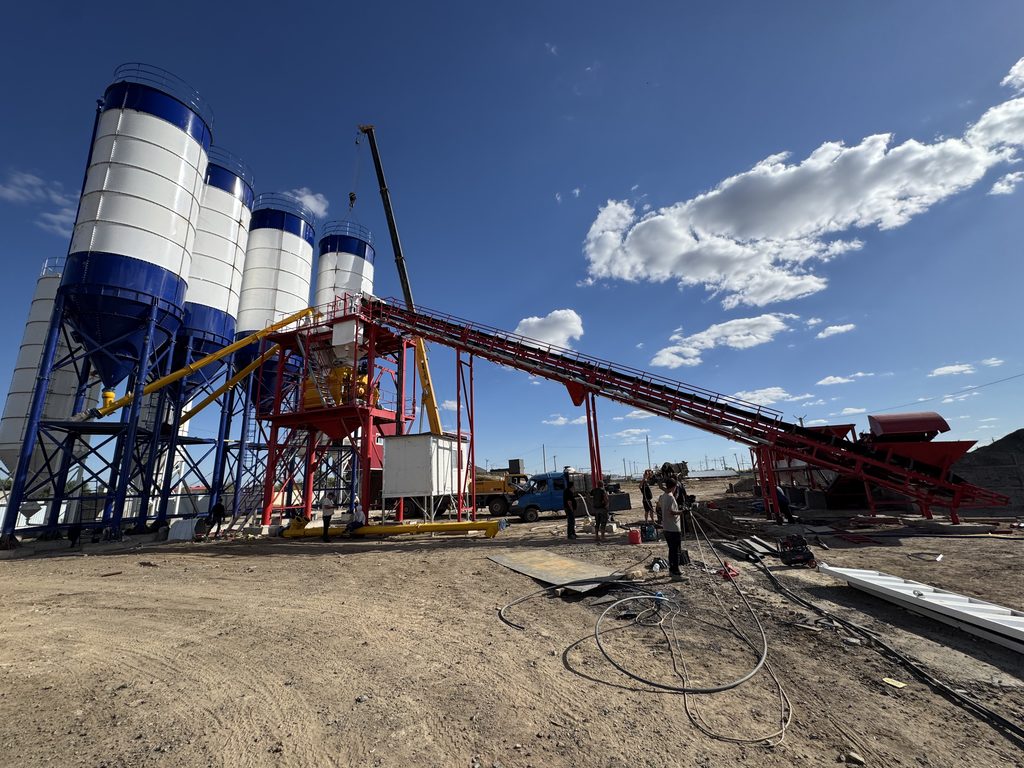

How the HZS180 Works
- Aggregate is loaded into separate high-capacity storage bins.
- The batching system weighs each fraction according to the selected recipe.
- A belt conveyor continuously transfers aggregate toward the mixing tower.
- Powder, water and admixture are independently weighed.
- The JS3000 mixer combines the materials under automatic sequence control.
- Finished concrete is discharged to mixer trucks or the specified downstream system.
Optional Configurations & Applications
Optional Configurations
- Large aggregate bin systems
- Multiple cement and supplementary powder silos
- Environmental enclosure and dust collection
- Cold-climate heating and insulation
- Customized electrical components and power standard
- Project-specific discharge and truck loading layout
Typical Applications
- Commercial ready-mix plants
- Expressway and bridge construction
- Large industrial facilities
- Railway and infrastructure projects
- Large precast concrete production

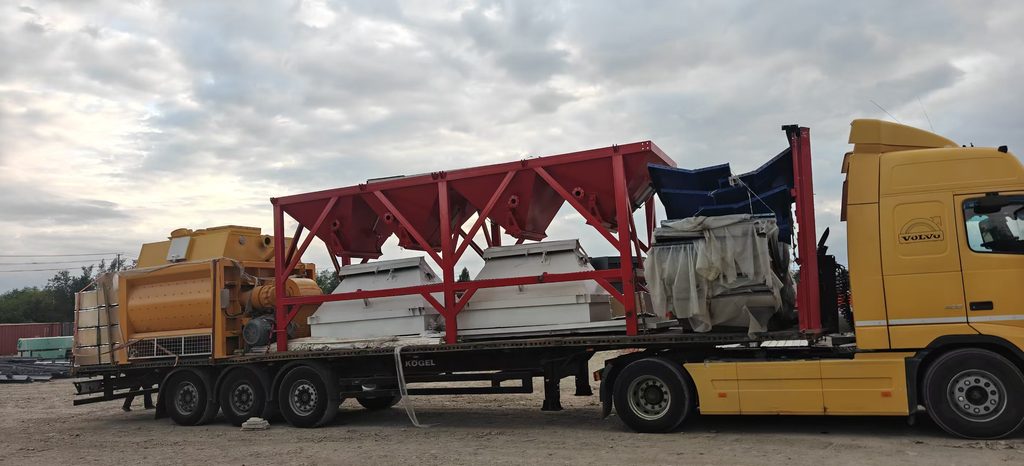

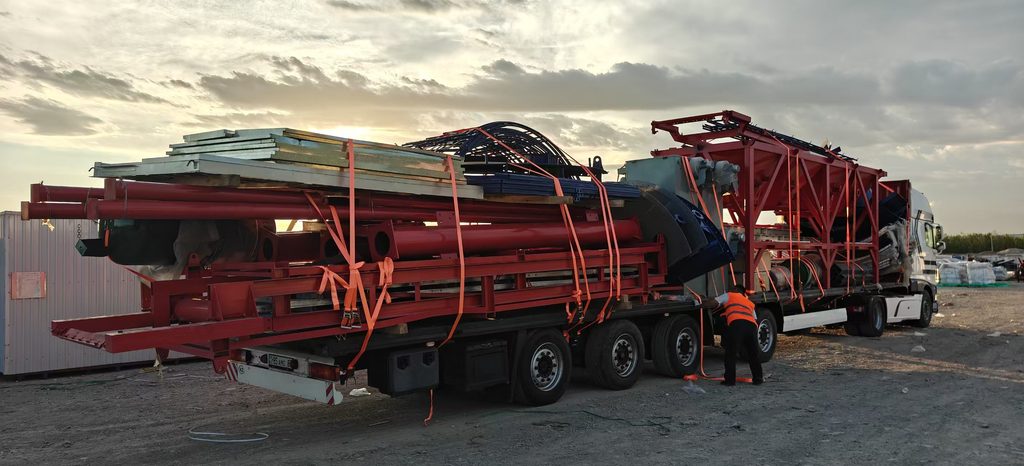

Installation, Transportation & Commissioning
For an HZS180 project, foundation design, aggregate conveyor orientation, silo layout, vehicle access, control room location and electrical supply should be coordinated before manufacturing. The plant can be engineered around local transport and installation conditions.
HZS180 FAQ
What mixer is used on a typical HZS180?
A typical HZS180 is equipped with a JS3000 twin-shaft compulsory mixer with 3000 L nominal discharge per batch.
How are aggregates normally fed?
Large HZS180 configurations commonly use belt conveyor feeding for continuous high-volume aggregate transfer.
Is HZS180 suitable for commercial ready-mix production?
Yes. It is designed for large production demand, although actual hourly output depends on concrete recipe, material supply and operating conditions.
Can HZS180 be enclosed for environmental control?
Yes. Dust collection, enclosed aggregate conveying and enclosed mixing structures can be included according to project requirements.
Get HZS180 Configuration & Quotation
Send your project requirements for a project-specific HZS180 technical configuration and commercial proposal.
- Country / installation location
- Required output (m³/h)
- Concrete application and aggregate specification
- Powder materials and cement silo requirements
- Local voltage and frequency
- Site layout and installation requirements
