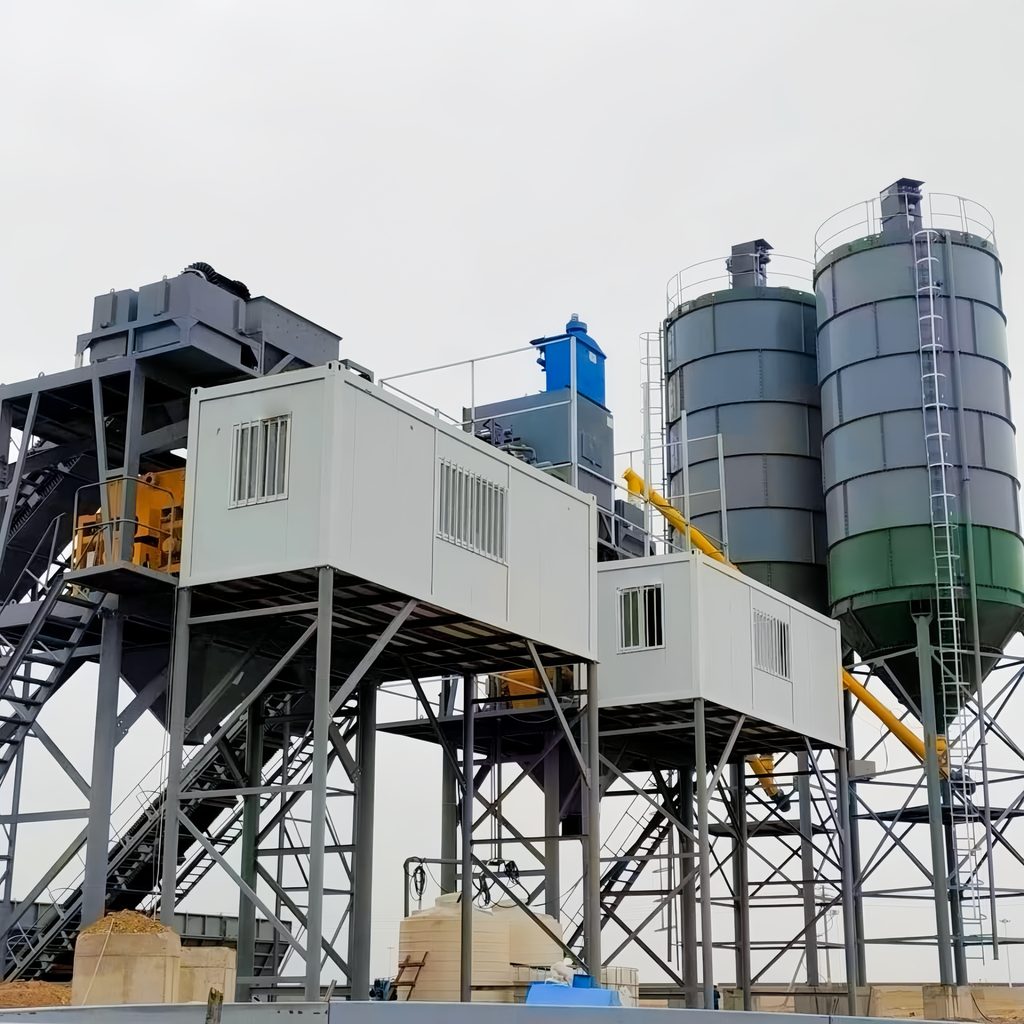

240 M³/H STATIONARY CONCRETE BATCHING PLANT
HZS240 Concrete Batching Plant
The HZS240 is a large high-output stationary concrete batching plant for commercial ready-mix production and major infrastructure projects. A typical HZS240 configuration uses a JS4000 twin-shaft compulsory mixer, PLD6400 aggregate batching system, belt conveyor feeding, independent material weighing and PLC plus industrial-computer automatic control.
240 m³/h
Theoretical Output
JS4000
Twin-Shaft Mixer
4000 L
Nominal Discharge
PLD6400
Typical Batching System
Why Choose the HZS240?
240 m³/h High Output
The plant is designed for large concrete production bases and projects where continuous, high-volume concrete supply is required.
JS4000 Heavy-Duty Mixing
The typical JS4000 twin-shaft compulsory mixer provides a 4000 L nominal discharge capacity for intensive, repeatable mixing.
Belt-Fed Automatic Production
High-capacity aggregate batching and belt conveying support continuous production, while centralized automatic control coordinates weighing, mixing and discharge.
HZS240 Technical Specifications
| Theoretical Productivity | 240 m³/h |
| Main Mixer | JS4000 twin-shaft compulsory mixer |
| Nominal Discharge Capacity | 4000 L |
| Typical Aggregate Batcher | PLD6400 |
| Aggregate Feeding | Belt conveyor |
| Typical Automatic Cycle | About 60–72 seconds, depending on configuration |
| Max. Aggregate Size | Typically up to 60/80 mm, depending on aggregate and configuration |
| Aggregate Weighing Accuracy | Typically ±2% |
| Cement / Powder Weighing Accuracy | Typically ±1% |
| Water Weighing Accuracy | Typically ±1% |
| Admixture Weighing Accuracy | Typically ±1% |
| Discharge Height | Typically about 4.1–4.3 m |
| Control System | PLC + industrial computer, fully automatic production with manual functions |
Reference values vary between project configurations. Final total power, bin capacities, weighing ranges, silo quantity, dimensions and electrical brands are confirmed in the technical proposal.
Main Components of the HZS240
JS4000 Twin-Shaft Mixer
The JS4000 is the typical mixing unit for HZS240. Its 4000 L nominal discharge capacity and compulsory twin-shaft mixing action are suited to high-volume commercial and engineering concrete production.
PLD6400 Aggregate Batching
The high-capacity batching system stores multiple aggregate fractions and weighs them according to the selected concrete recipe before belt conveying.
Independent Weighing Systems
Aggregate, cement and other powders, water and admixtures are measured independently. This allows the control system to coordinate material dosing for each production batch.

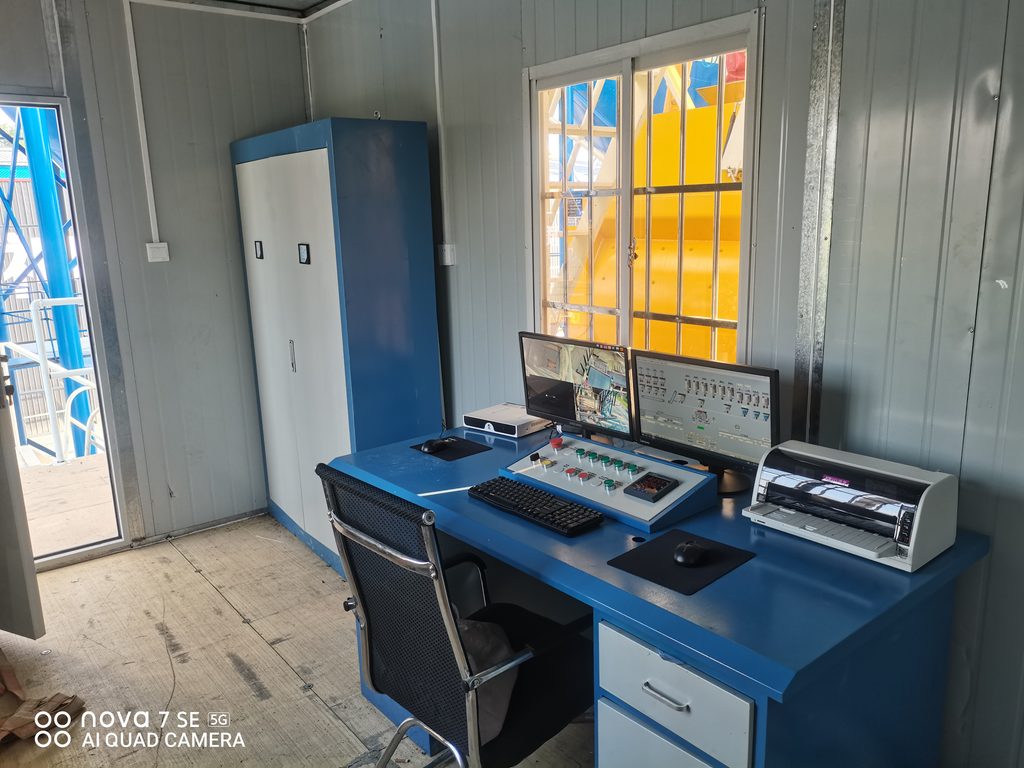

Powder Storage & Automatic Control
Multiple cement or powder silos can be connected through screw conveyors. PLC and industrial-computer control manage recipes, batching, weighing, mixing and discharge.
How the HZS240 Works
1. Aggregate Batching
Multiple aggregate fractions are stored and weighed according to the concrete recipe.
2. Belt Conveying

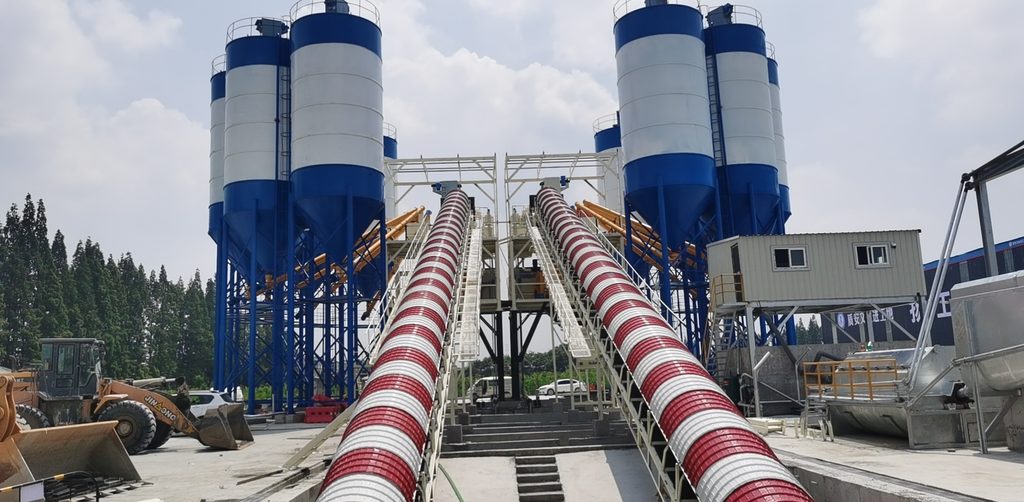

Weighed aggregate is transferred continuously to the mixing tower by belt conveyor.
3. Powder Weighing
Cement, fly ash or other powders are conveyed from silos and weighed independently.
4. Water & Admixture Metering
Water and liquid admixtures are measured according to the selected recipe.
5. JS4000 Mixing
All measured materials enter the twin-shaft mixer for compulsory mixing.
6. Concrete Discharge
Finished concrete is discharged to mixer trucks or downstream concrete production equipment.
Optional Configurations & Applications
Configuration Options
- Aggregate bin quantity and storage capacity
- Cement, fly ash and mineral powder silo combinations
- Screw conveyor size and arrangement
- Dust collection and plant enclosure systems
- Cold-weather and hot-climate solutions
- Destination-specific voltage and frequency
- Control and production-data management options
- Project-specific plant and traffic layout
Typical Applications
- Large commercial ready-mix concrete plants
- Highway and bridge construction
- Railway and airport projects
- Water conservancy and hydropower projects
- Large industrial and municipal construction
- Concrete production bases requiring sustained high output
Installation, Transport & Commissioning
HZS240 is a large stationary production system. Foundation conditions, aggregate-yard layout, belt conveyor arrangement, silo positions, mixer-truck circulation, electrical supply and environmental requirements should be considered before the final equipment layout is confirmed.
For export projects, transport dimensions, container or bulk-shipping requirements, destination voltage and frequency, climate and installation support should be confirmed during technical proposal preparation.
HZS240 FAQ
What is the capacity of the HZS240 concrete batching plant?
The reference theoretical productivity is 240 m³/h. Actual output depends on recipe, cycle time, aggregate feeding, truck positioning and the final plant configuration.
Which mixer is normally used for HZS240?
A typical HZS240 plant uses a JS4000 twin-shaft compulsory mixer with a nominal discharge capacity of 4000 L.
How are aggregates fed in an HZS240 plant?
HZS240 normally uses a high-capacity belt conveyor system between aggregate batching and the mixing tower to support continuous production.
Can the HZS240 be configured for overseas projects?
Yes. Electrical standards, silo combinations, screw conveyors, enclosure, dust collection, climate protection and plant layout can be configured according to the destination and project requirements.
Get HZS240 Specifications, Configuration & Price
Send us your destination country, required output, concrete application, aggregate specification, powder materials, silo requirements, voltage/frequency and site conditions. We can prepare an HZS240 technical configuration and quotation for your project.
