STATIONARY CONCRETE BATCHING PLANT
HZS90 Concrete Batching Plant
90 m³/h stationary concrete production solution for ready-mix, road, bridge, industrial and infrastructure projects.
90 m³/h
Capacity
JS1500
Twin-shaft mixer
PLD2400
Typical batching
PLC
Automatic control
Send your required capacity, aggregate specification, silo requirements, destination and local power supply for a project-specific configuration.
Why Choose the HZS90 Concrete Batching Plant?
The HZS90 is a medium-capacity stationary batching solution designed for stable continuous production, accurate material dosing and flexible project configuration. It is suitable for commercial ready-mix supply and medium-to-large infrastructure projects.
Stable Production
90 m³/h class output with forced twin-shaft mixing for continuous concrete production.
Accurate Weighing
Independent weighing of aggregate, powder, water and admixture supports repeatable mix proportions.
Flexible Configuration
Aggregate bins, silos, conveyors, electrical components and environmental systems can be matched to the project.
HZS90 Technical Specifications
| Parameter | Reference Specification |
|---|---|
| Model | HZS90 |
| Plant Type | Stationary concrete batching plant |
| Theoretical Production Capacity | 90 m³/h |
| Typical Main Mixer | JS1500 twin-shaft concrete mixer |
| Nominal Mixer Discharge | 1500 L |
| Typical Aggregate Batching System | PLD2400 |
| Typical Mixing Cycle | Approx. 60 s |
| Aggregate Weighing Accuracy | Typically ±2% |
| Powder / Water / Admixture Weighing Accuracy | Typically ±1% |
| Discharge Height | Approx. 3.8–4.2 m |
| Control System | PLC + industrial computer |
| Operation Mode | Automatic + manual backup |
Reference values are based on a typical configuration. Final power, bin capacity, weighing range, dimensions, electrical brands and other parameters are confirmed according to the project configuration.
Main Components of HZS90

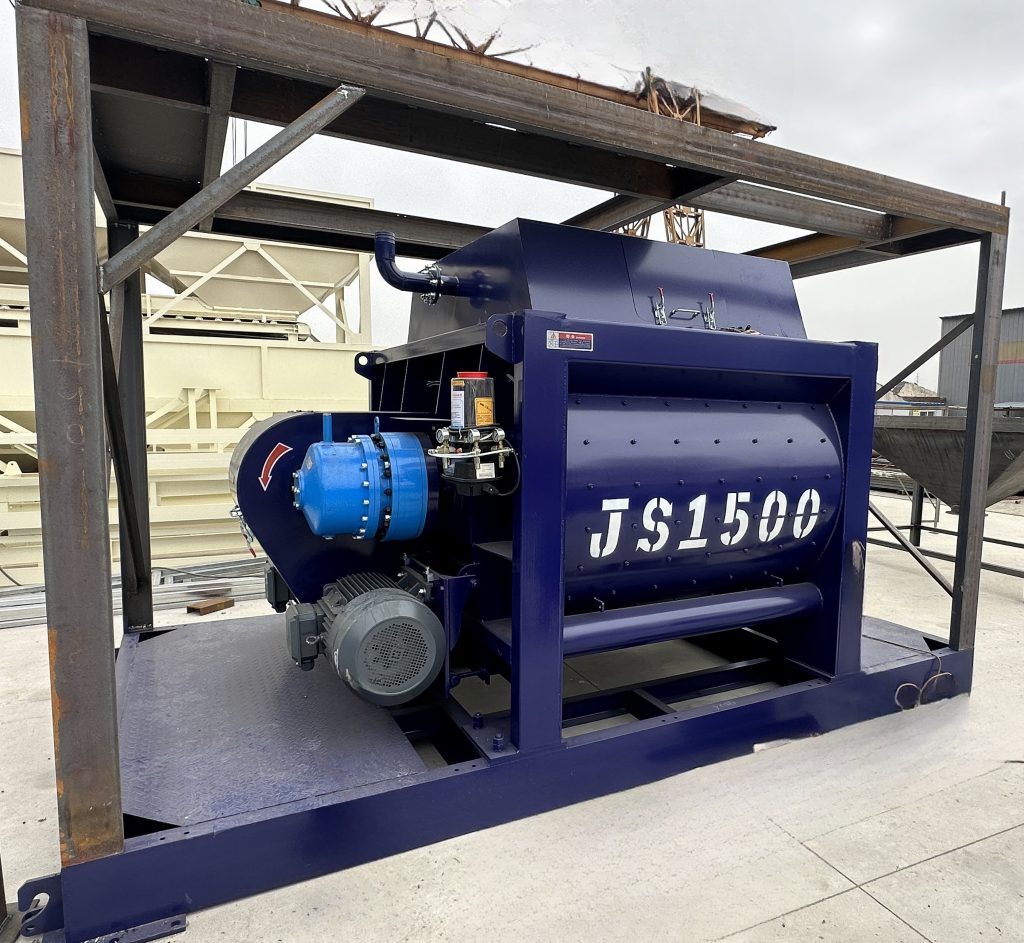

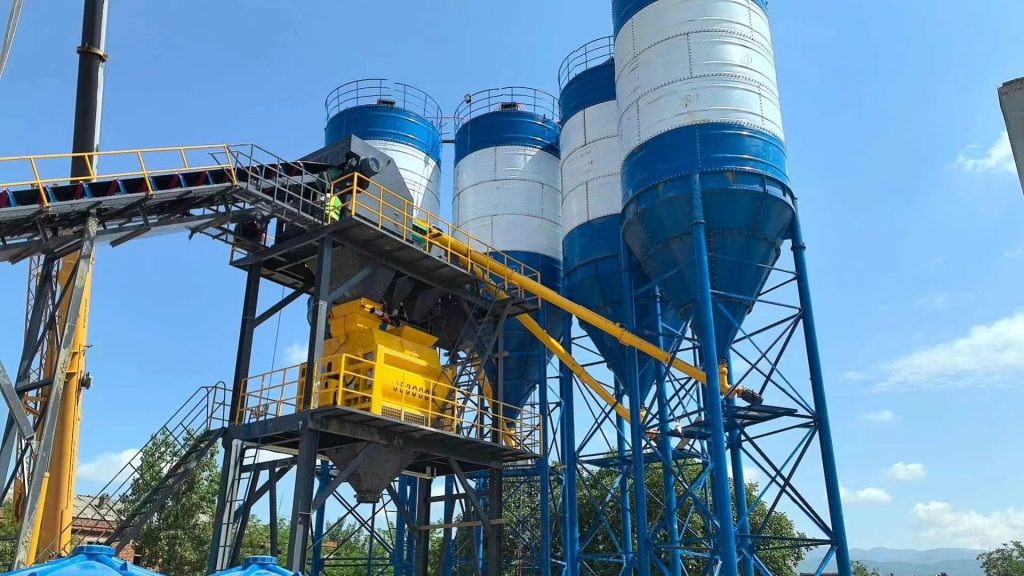

JS1500 Twin-Shaft Concrete Mixer
A typical HZS90 uses a JS1500 twin-shaft forced mixer with 1500 L nominal discharge capacity. The twin-shaft mixing principle provides intensive material circulation for uniform mixing.
PLD2400 Aggregate Batching System
Aggregate bins store and meter sand and stone fractions. Bin quantity, capacity and feeding arrangement are selected according to aggregate types and site layout.
Independent Weighing System
Dedicated weighing units with load-cell measurement support accurate dosing of aggregate, powder, water and liquid admixtures.

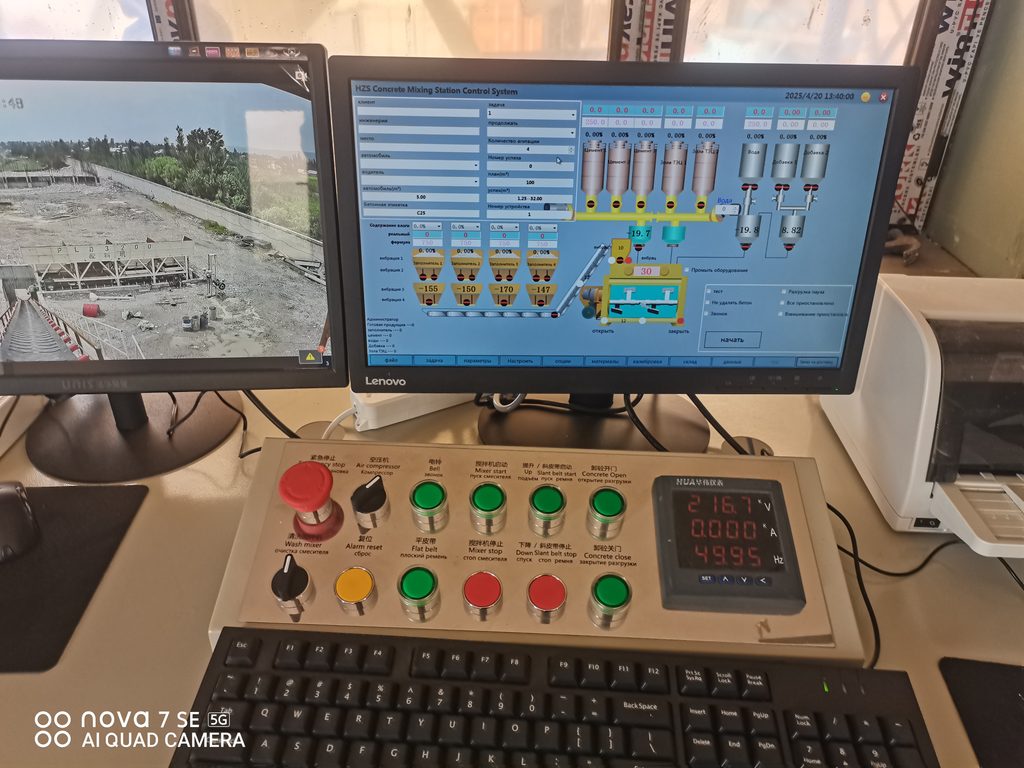

PLC Automatic Control System
PLC-based control supports automatic batching and mixing, recipe management, production monitoring and manual backup operation.
Cement Silos & Screw Conveyors
Powder materials are stored in project-matched silos and transferred by screw conveyors. Silo capacity and quantity are selected according to daily consumption and material supply.
How the HZS90 Batching Plant Works
- Sand and aggregates are stored in separate aggregate bins.
- Required aggregate fractions are measured according to the concrete recipe.
- Powder, water and admixtures are weighed through their respective systems.
- Measured materials are delivered to the JS1500 mixer in the programmed sequence.
- The twin-shaft mixer completes forced mixing for the preset cycle.
- Finished concrete is discharged to a transit mixer or the next production process.
Optional Configurations
- Different aggregate bin quantities and capacities
- Cement, fly ash and other powder silos
- Matched screw conveyors
- Additional admixture dosing systems
- Dust collectors and enclosed structures
- Cold-weather heating solutions
- Hot-climate temperature-control solutions
- Customized electrical components
- Local voltage and frequency adaptation
- Customized control-room configuration
Applications
- Ready-mix concrete production
- Road and highway construction
- Bridge and railway projects
- Industrial and logistics facilities
- Municipal and infrastructure construction
- Large residential and commercial projects
- Suitable precast concrete production

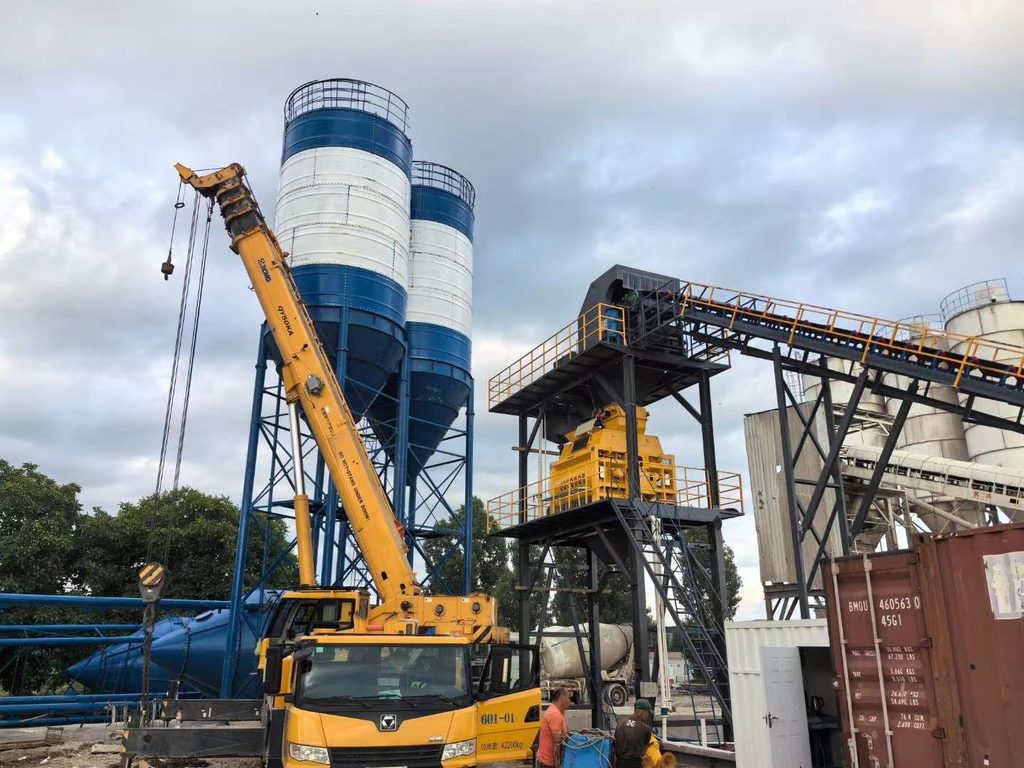

Installation, Transportation & Commissioning
Before production, the HZS90 requires site planning, foundation preparation, mechanical assembly, electrical connection, calibration and trial operation. The plant is normally divided into transportable modules for shipment.
Provide the installation country and city, site conditions and local power supply so the installation, transport and commissioning plan can be matched to the final configuration.
HZS90 Concrete Batching Plant FAQ
What is the capacity of an HZS90 concrete batching plant?
The theoretical capacity is approximately 90 m³/h. Actual output depends on recipe, aggregate condition, feeding efficiency, mixing time and site operation.
Which mixer is normally used for HZS90?
A typical configuration uses a JS1500 twin-shaft forced concrete mixer with 1500 L nominal discharge capacity.
Can the HZS90 configuration be customized?
Yes. Aggregate bins, silos, screw conveyors, powder types, admixture systems, environmental enclosure and electrical systems can be configured for the project.
What information is needed for a quotation?
Provide destination, required output, concrete application, aggregate sizes and fractions, powder materials, silo requirements, local voltage and frequency, site conditions and installation requirements.
Get HZS90 Configuration & Quotation
Send us your project requirements and we will match the batching, mixing, storage, weighing and control configuration before preparing the technical proposal and quotation.
- Country / installation location
- Required output (m³/h)
- Concrete application and aggregate specification
- Powder materials and cement silo requirements
- Local voltage and frequency
- Site layout and installation requirements
