25 M³/H STATIONARY CONCRETE BATCHING PLANT
HZS25 Concrete Batching Plant

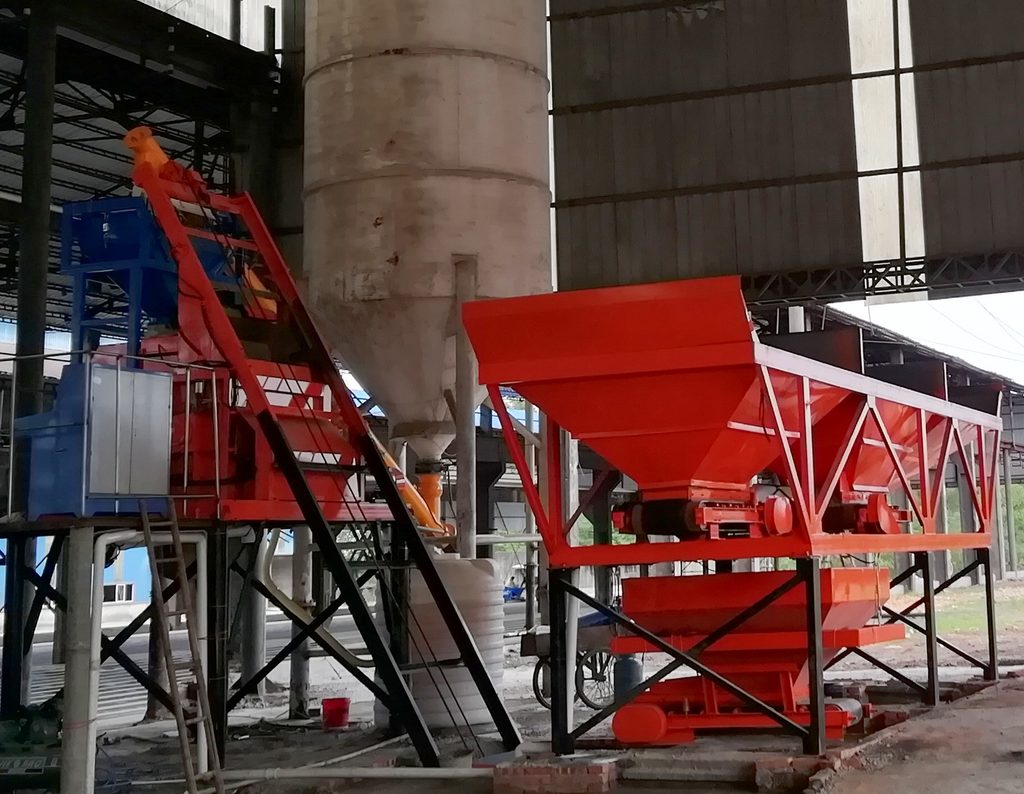

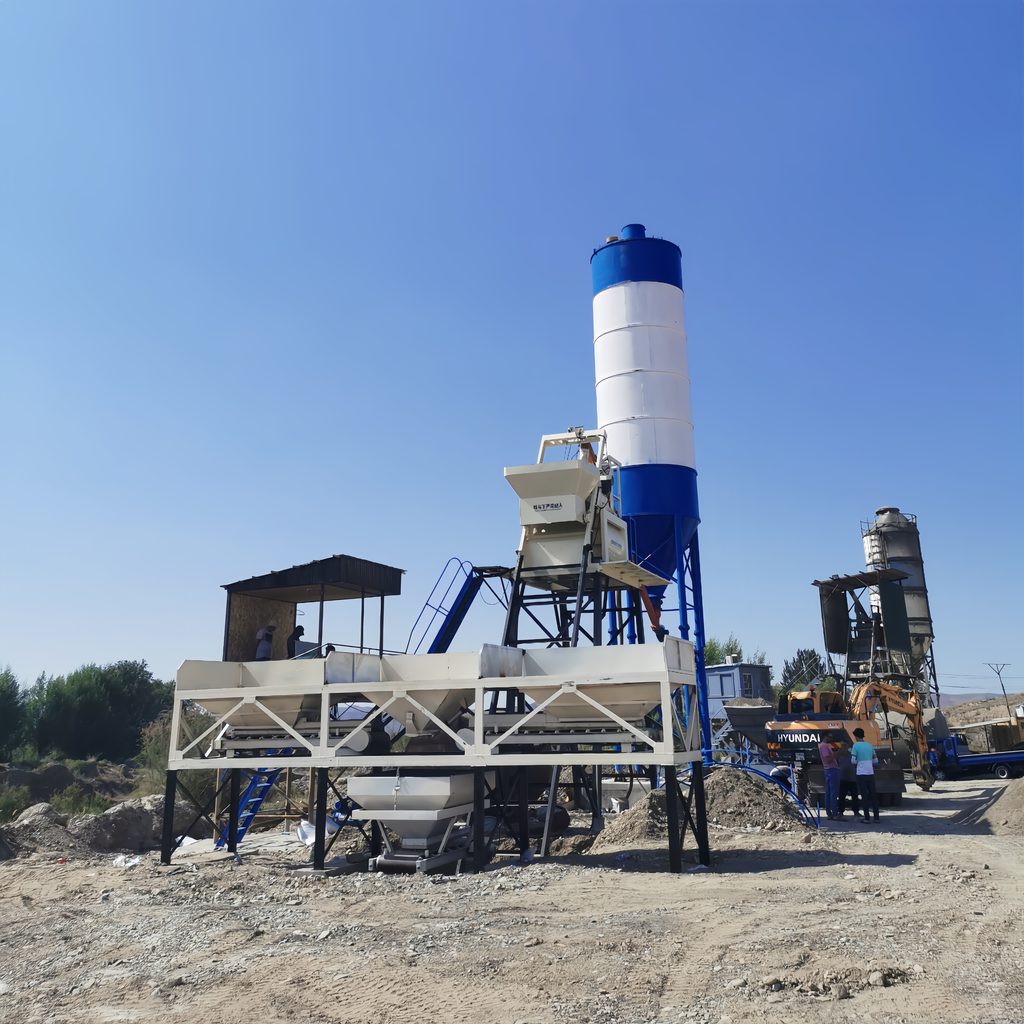

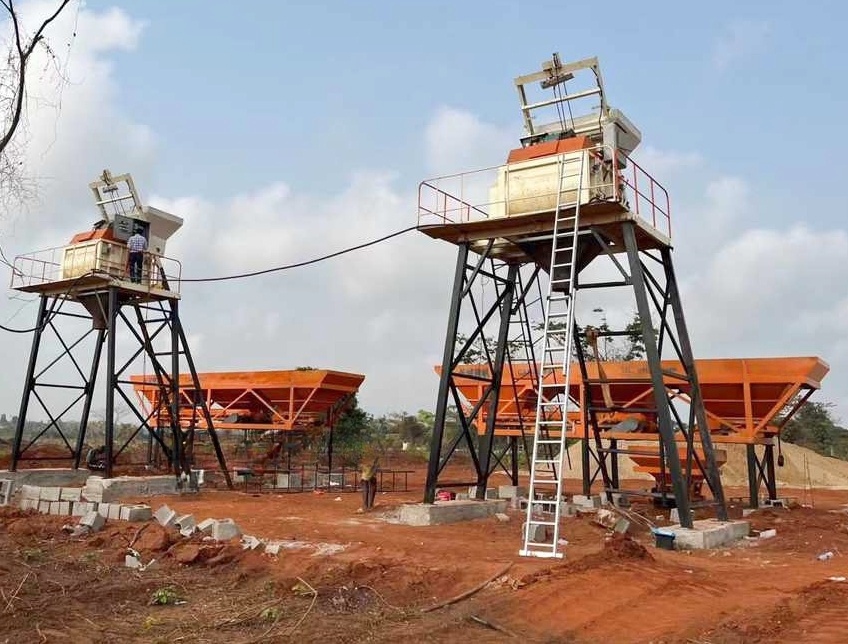

The HZS25 is a compact stationary concrete batching plant designed for small construction projects, precast production and independent on-site concrete supply. A typical configuration combines a JS500 twin-shaft compulsory mixer, PLD800 aggregate batching system, skip-hopper feeding, independent weighing and PLC automatic control.
25 m³/h
Theoretical Output
JS500
Twin-Shaft Mixer
500 L
Nominal Discharge
PLD800
Typical Batching System
Why Choose the HZS25?
Compact Stationary Layout
Its compact layout is suitable for projects where installation space, transport volume and concrete demand are lower than those of a large commercial batching plant.
JS500 Compulsory Mixing
The JS500 twin-shaft mixer provides intensive compulsory mixing with a typical nominal discharge capacity of 500 L per batch.
Flexible Project Configuration
Aggregate bins, cement silos, screw conveyors, weighing equipment, electrical components and environmental options can be configured for the destination and site.
HZS25 Technical Specifications
| Theoretical Productivity | 25 m³/h |
| Main Mixer | JS500 twin-shaft compulsory mixer |
| Nominal Discharge Capacity | 500 L |
| Typical Aggregate Batcher | PLD800 |
| Aggregate Feeding | Skip hopper, typical configuration |
| Aggregate Weighing Accuracy | Typically ±2% |
| Powder Weighing Accuracy | Typically ±1% |
| Water Weighing Accuracy | Typically ±1% |
| Admixture Weighing Accuracy | Typically ±1% |
| Control System | PLC automatic control with manual operating functions |
| Discharge Height | Project-specific |
Reference specifications may vary with aggregate-bin quantity, weighing ranges, silo arrangement, electrical standard and final project configuration.

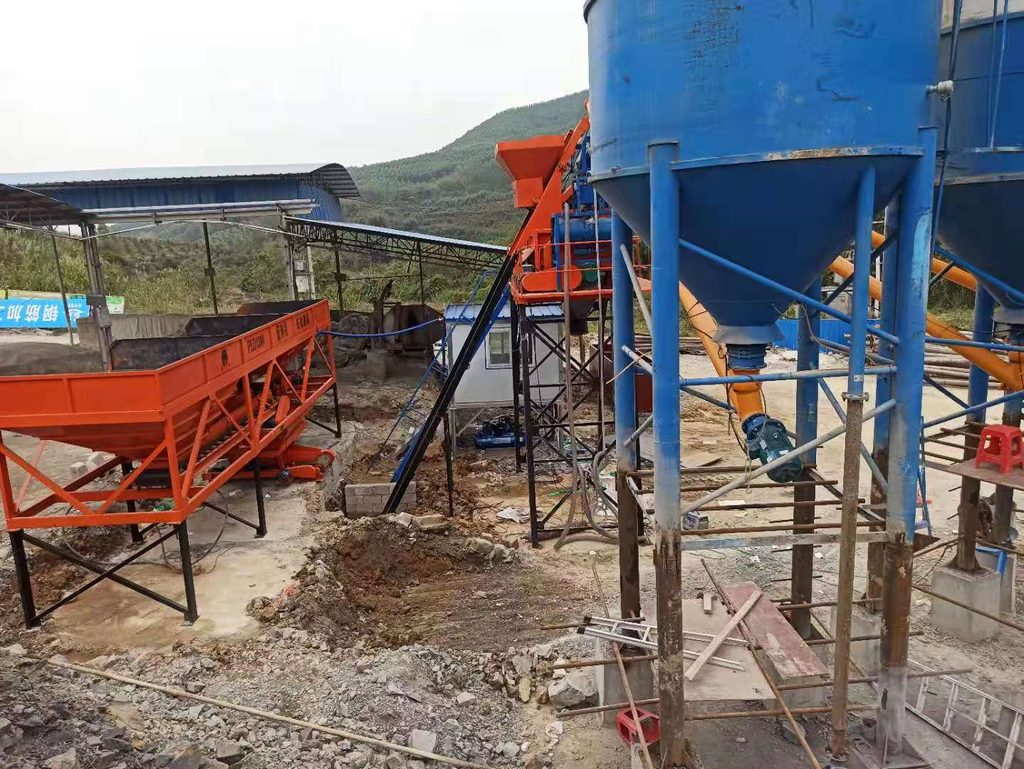

Main Components of the HZS25
JS500 Twin-Shaft Mixer
The JS500 is the core mixing unit of a typical HZS25 plant, providing compulsory mixing for common concrete recipes.

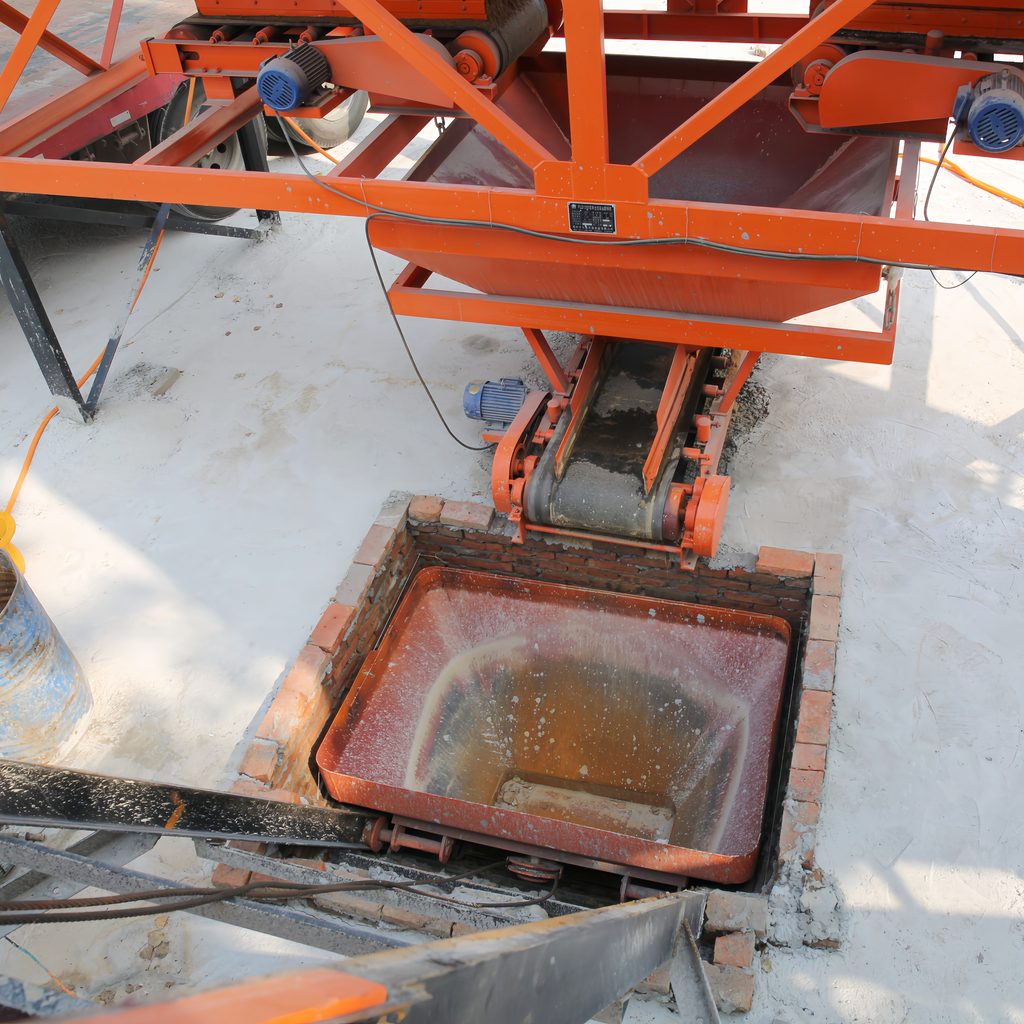

PLD800 Aggregate Batching
The batching system stores and meters different aggregate fractions according to the selected concrete recipe.
Independent Weighing
Cement or other powder materials, water and admixtures are measured through dedicated weighing equipment for repeatable batch production.
Silo, Screw Conveyor & PLC Control
Powder storage and conveying are selected according to project consumption. The control system coordinates batching, weighing, feeding, mixing and discharge.
How the HZS25 Works
1. Aggregate Batching
Aggregate fractions are weighed according to the programmed recipe.
2. Skip-Hopper Feeding
Weighed aggregate is lifted to the mixer by the skip-hopper system.
3. Powder Weighing
Cement and configured powder materials are conveyed from storage and weighed.
4. Water & Admixture Metering
Water and admixture are measured according to the selected recipe.
5. JS500 Mixing
All measured materials enter the JS500 twin-shaft mixer for compulsory mixing.

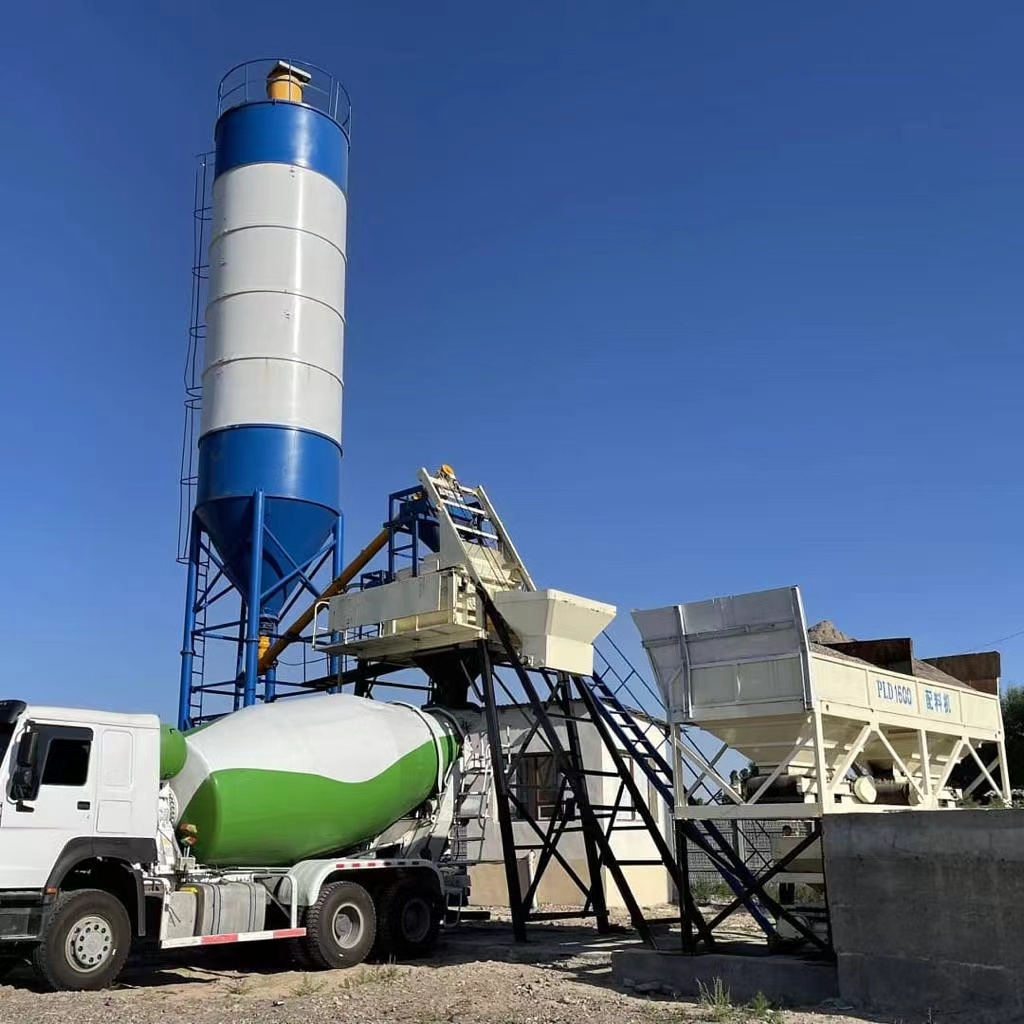

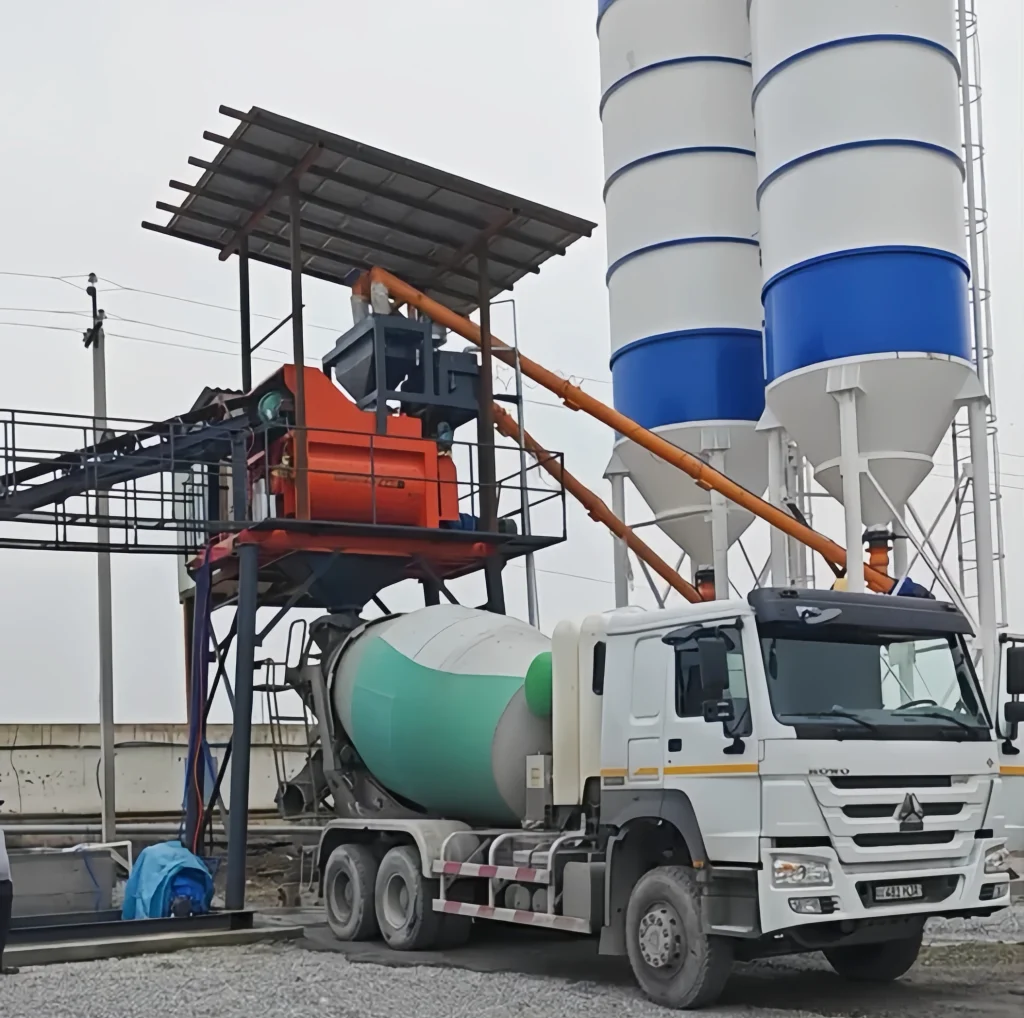

6. Concrete Discharge
Finished concrete is discharged to the receiving vehicle or downstream equipment.
Optional Configurations & Applications
Configuration Options
- Aggregate bin quantity and storage capacity
- Cement silo capacity and quantity
- Screw conveyor arrangement
- Water and admixture weighing configuration
- Dust collection and enclosure options
- Electrical components for destination voltage and frequency
- Cold-weather or environmental protection options
- Project-specific discharge and site layout
Typical Applications
- Small construction projects

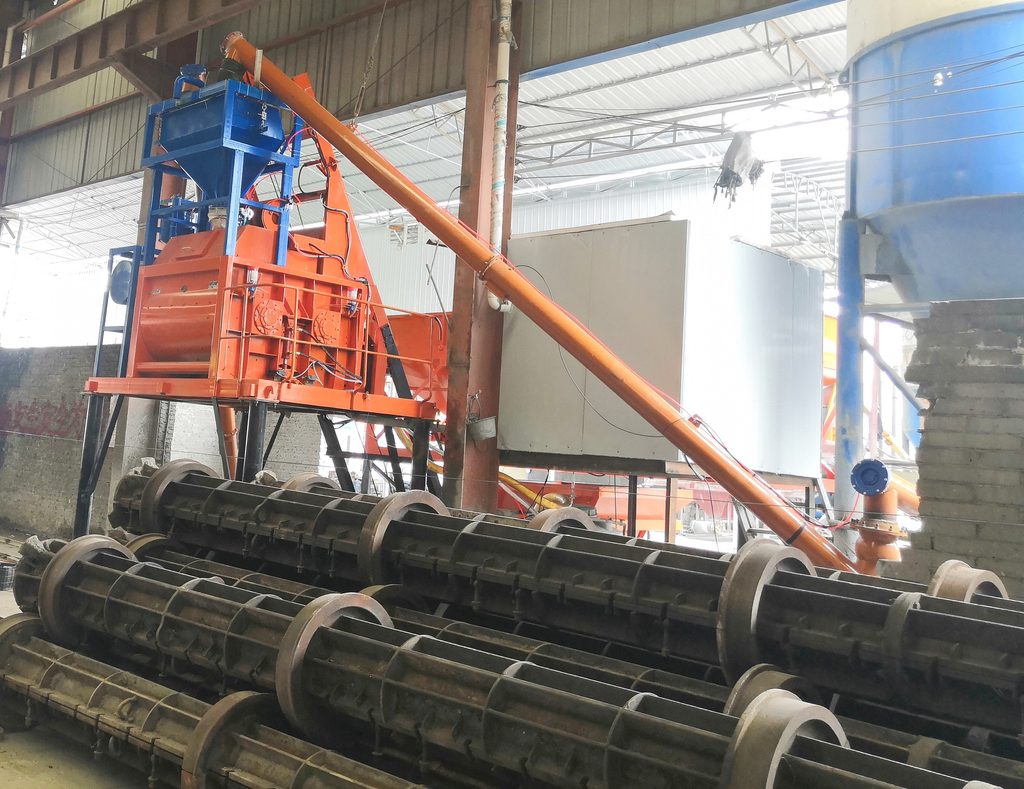

- Precast concrete yards
- Rural and municipal construction
- Road maintenance projects
- Independent on-site concrete production
- Small concrete product production lines
Installation, Transport & Commissioning
The compact HZS25 layout can simplify transportation and site arrangement compared with larger stationary plants. Final foundation, silo position, vehicle access, electrical connection and equipment layout should be confirmed according to the project site.
For overseas projects, destination voltage and frequency, transport method, local climate and installation requirements should be provided before the final configuration is confirmed.
HZS25 FAQ
What is the capacity of the HZS25 concrete batching plant?
The reference theoretical productivity is 25 m³/h. Actual output depends on concrete recipe, mixing time, material feeding and operating conditions.
Which mixer is used in the HZS25?
A typical HZS25 configuration uses a JS500 twin-shaft compulsory mixer with a nominal discharge capacity of 500 L.
How are aggregates fed to the HZS25 mixer?
The typical HZS25 configuration uses skip-hopper aggregate feeding, helping keep the plant compact.
Can the HZS25 be customized for export projects?
Yes. Silo arrangement, electrical standard, aggregate bins, screw conveyors, weighing systems and environmental options can be selected according to the destination and project requirements.
Get HZS25 Specifications, Configuration & Price
Send us your destination country, required output, concrete application, aggregate sizes, cement silo requirements, local voltage/frequency and site information. We can prepare an HZS25 configuration and quotation for your project.
